Hitch Climber O Rig

  • dogwood
  • dogwood's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
More
10 years 10 months ago #136309 by dogwood
Hitch Climber O Rig was created by dogwood

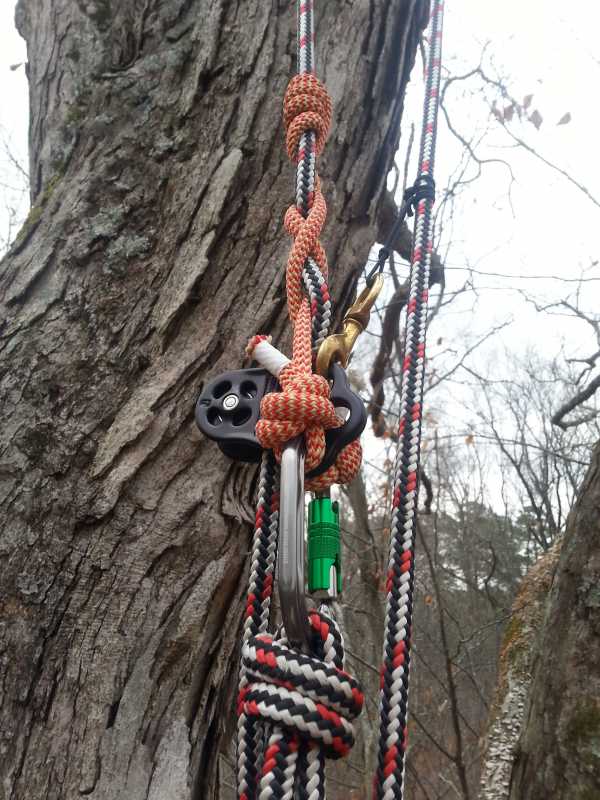

I've been thinking about upping my game in terms of gear and technique lately. This is a Hitch Climber, set up as an O rig, which I've installed on my DdRT system. My climbing line is 12mm Arbormaster, so I decided to use 10mm Ocean Poly for my hitch. Moss mentioned getting cordage by the foot to come up with a custom dialed in length, rather than taking a guess on an E2E splice, so that's what I did for this set up. It turns out the center of eye length on the cord is 32", which gives me a snug XT hitch. DMM recommends an eye splice in the end of the climbing line so as not to interfere with the hitch. Since my line isn't spliced, I used the O rig set up. This way, the line comes through the swivel attachment on my harness, then up, to connect to the biner under the pulley, thus staying away from the hitch. I've also rigged a small accessory biner with a prussic from the pulley to the standing line. This also enables me to adjust the distance, closer or further away from the harness as need be. Since I'm getting interested in the world of SRT and the Wrench in particular, I figure this is a nice segue. The hitch operates well. It'll take a little getting used to; like for instance, as I was going up a small branch contacted the top of the hitch and slid me down a bit. I'm sure I'll be able to make use of it, DdRT or SRT.
Attachments:

Please Log in or Create an account to join the conversation.

  • dogwood
  • dogwood's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
More
10 years 10 months ago #136311 by dogwood
Replied by dogwood on topic Hitch Climber O Rig
Looking closer, I believe this is a VT, not an XT.

Please Log in or Create an account to join the conversation.

More
10 years 10 months ago #136312 by dk21208
Replied by dk21208 on topic Hitch Climber O Rig
I'm still trying to decide my ideal setup, but when I'm experimenting with new ideas I almost always fall back on the hitch climber as my go to setup. I also like the concept of the o rig, but still haven't gotten it tweaked to my liking to be comfortable enough to use it at height. The part of this setup you didn't mention is the ring your hitch is passing through. I vaguely recall seeing this discussed somewhere but can't remember the details. Can you elaborate?

Please Log in or Create an account to join the conversation.

  • dogwood
  • dogwood's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
More
10 years 10 months ago #136313 by dogwood
Replied by dogwood on topic Hitch Climber O Rig
That ring is something I saw on arbtalk. Somehow I liked the look of it, as it seems to introduce a little discipline to the lower tresses. I'm only beginning to mess with it though. The main difference between the VT hitch (shown), and the XT, is that in the XT, the line coming off the bottom of the hitch crosses under the line coming down from the top of the hitch and changes direction between it and the climbing line. So the braid you see in front, would be behind, if that makes sense. I think that makes the XT more stable. I'll try it with and without the ring and post further results.

Please Log in or Create an account to join the conversation.

  • dogwood
  • dogwood's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
More
10 years 9 months ago #136348 by dogwood
Replied by dogwood on topic Hitch Climber O Rig

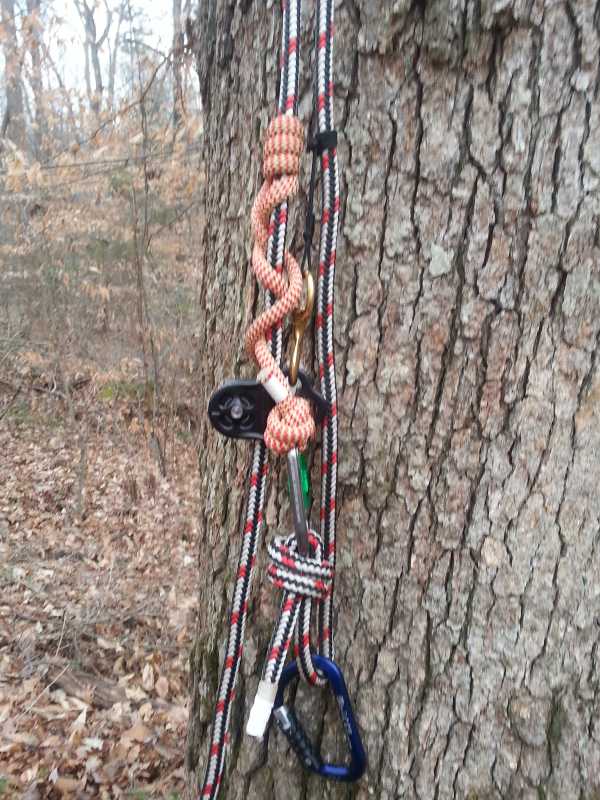

This rig is working out well for me now, until I get an eye splice in the end of my climbing line.


Attachments:

Please Log in or Create an account to join the conversation.

  • dogwood
  • dogwood's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
More
10 years 9 months ago #136349 by dogwood
Replied by dogwood on topic Hitch Climber O Rig
No ring required, just a properly tuned hitch.

Please Log in or Create an account to join the conversation.

More
3 years 2 months ago #139813 by aebarnes08
Replied by aebarnes08 on topic Hitch Climber O Rig
I have been looking at trying this setup however I have some concerns and can't quite figure out how it works.

The dog clip and friction hitch that "tends" the primary friction hitch, seems to me to be inadequate. The dog clip/hitch does a lot more than just tend the primary hitch: it completes the loop through your harness terminating the working end of the moving rope system. When you pull down on the standing end to make progress the primary friction hitch carries no load. Ignoring friction at tie in, half your weight is carried by your arms, the other half via the loop (working end of climbing line down through harness up to biner, HCP, dog clip, prussic).

If the dog clip/prussic fails, the working end hitch/biner/HCP will all slide around and jam into harness connection point hopefully holding.

Is this expected and understood and considered safe and acceptable?


Also, how does one progress the climbing line?
Do you need the line to run through a biner on harness (as opposed to just running though ring) and another biner connecting working end to biner attached to friction hitch and HCP?

In practice have you found that this is all worth the complex setup?

After trying several times to use the HCP I still find just a friction hitch at arms length so I can pull from below and then push hitch up works best when ascending the line. However once climbing the tree, trying to take up slack is difficult.

I was hoping to try out the arrangement posted here to be able to move the HCP out further for climbing then back in close when in the canopy.

Would appreciate your thoughts, thanks.
Alan

Please Log in or Create an account to join the conversation.

More
3 years 18 hours ago - 3 years 18 hours ago #139831 by BurOakTom
Replied by BurOakTom on topic Hitch Climber O Rig
Been meaning to reply to this for a while...finally registered on the site so I could :-)

aebarnes08 wrote: I have been looking at trying this setup however I have some concerns and can't quite figure out how it works.

The dog clip and friction hitch that "tends" the primary friction hitch, seems to me to be inadequate. The dog clip/hitch does a lot more than just tend the primary hitch: it completes the loop through your harness terminating the working end of the moving rope system. When you pull down on the standing end to make progress the primary friction hitch carries no load. Ignoring friction at tie in, half your weight is carried by your arms, the other half via the loop (working end of climbing line down through harness up to biner, HCP, dog clip, prussic).

If the dog clip/prussic fails, the working end hitch/biner/HCP will all slide around and jam into harness connection point hopefully holding.

Is this expected and understood and considered safe and acceptable?]


The dog clip and hitch are not carrying any load. They serve only to lock the "O rig" in place, i.e. keep the friction hitch (looks like a 3/3 VT to me but I'm just starting to play with closed friction hitches) in a fixed location with respect to the climber.

Being an MRS system, the life support setup here is a loop: VT - climbing rope up over the TIP down through the blue biner and up again - Fishermans knot on silver/green biner - silver/green biner - hitch cord knots on silver/green biner - VT. Then the blue biner connects the climber's harness to the loop, so that and the harness are also life support. If you hang from that and remove the dog clip, you will not go anywhere.

https://vimeo.com/70760262 may help you see how it all works.

Also, how does one progress the climbing line?


Same as with a regular HCP setup. The HCP advances the friction hitch. The system self-tends if you're using a foot ascender or pulling on the tail of the rope, though you'll get some sit-back. When the tail is slack one can push it up and away to push the HCP up against the friction hitch.

Do you need the line to run through a biner on harness (as opposed to just running though ring) and another biner connecting working end to biner attached to friction hitch and HCP?


Not sure what you're asking here, unless it's about that blue biner clipping into whatever your harness's central attachment point might be (bridge, ring, screwlink, ...).

In practice have you found that this is all worth the complex setup?


Probably depends on the climber and the situation. I expect it's uncommon at least among serious climbers; I don't see it mentioned on forums. But then they generally use SRS rather than MRS for their main ascent.

I've tried a similar setup on an MRS with Blakes (no HCP). The extra setup is minimal -- I already have the clip on a paracord loop and all I have to do is tie the prusik and clip it on. It can be nice when I want to do climb using long pulls, say when footlocking, or hip-thrusting with my feet against the tree -- I can put the Blakes so high it's out of reach, then move it back close when I'm ready to move about the canopy. I haven't found myself using it much; my guess is that won't change but I could be wrong.

Try it and see what you think. The added cost is minimal.

After trying several times to use the HCP I still find just a friction hitch at arms length so I can pull from below and then push hitch up works best when ascending the line. However once climbing the tree, trying to take up slack is difficult.


Sounds like you're talking about a Blakes hitch system? If so, yep. Adding a hitch-tending pulley (not a HitchClimber setup; just a utility pulley under the friction hitch and clipped to the biner like on p. 53 of The Tree Climber's Companion) helps a LOT with that.

I was hoping to try out the arrangement posted here to be able to move the HCP out further for climbing then back in close when in the canopy.

Would appreciate your thoughts, thanks.
Alan


The video might help you work out how to use this. Good luck.
Last edit: 3 years 18 hours ago by BurOakTom. Reason: formatting
